Fullerene (C20) as a potential adsorbent and sensor for the removal and detection of picric acid contaminant: A DFT Study

Document Type : Research paper


1 Young Researchers and Elite Club, Yadegar-e-Imam Khomeini (RAH) Shahr-e-Rey Branch, Islamic Azad University, Tehran, Iran

2 Pazhohehsaraye aknar sarabi.st;shahid montazeri.Tabriz Iran


Picric acid is a nitrophenol environmental contaminant that has adverse effects on the environment and the health of humans. Therefore, its removal and detection are very important. In this respect, infra-red (IR), natural bond orbital (NBO) and frontier molecular orbital (FMO) computations were employed for estimating the performance of fullerene (C20) as a sensor and adsorbent for picric acid. The calculated values of adsorption energy, Gibbs free energy changes and enthalpy variations showed picric acid adsorption on the surface of fullerene is experimentally possible, exothermic and spontaneously. In the adsorption process, the specific heat capacity of fullerene increased from 152.495 to 361.224 J/Mol.K but its bandgap declined -39.039% from 7.145 (eV) to 4.356 (eV) that indicated the thermal and electrical conductivity of fullerene enhanced remarkably when picric acid was adsorbed on its surface and this nanostructure is a suitable sensing material for the construction of new thermal and electrochemical sensors. The influence of temperature was also checked out and the results showed picric acid interaction with C20 was more favorable in lower temperatures. The NBO computations showed picric acid interaction with fullerene was chemisorption. The FMO results showed the chemical hardness of picric declined after its interaction with fullerene and picric acid-C20 complexes were more reactive than pure picric acid. The electrophilicity and maximum transferred charge capacity indices demonstrated the tendency of picric acid towards electron decreased after it was adsorbed on the surface of fullerene and picric acid-fullerene complexes were less electrophile than pure picric acid. Other structural parameters were also discussed in detail.

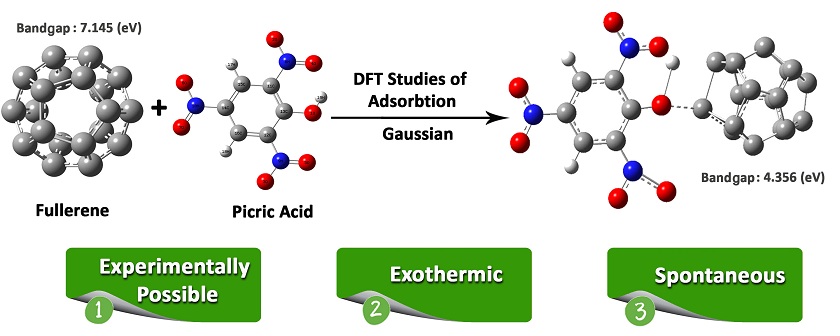

Graphical Abstract

Fullerene (C20) as a potential adsorbent and sensor for the removal and detection of picric acid contaminant: A DFT Study


  • The adsorption of picric acid on the surface of C20 fullerene is explored using DFT calculations.
  • HUMO/LUMO bandgap of C20 reduces significantly in the adsorption process.
  • Picric acid desorbs from the adsorbent surface by increasing of temperature.


Main Subjects

Agarwal, B., Mendez, R.G., Lanza, M., Sulzer, P., Mark, T.D., Thomas, N., Mayhew, C.A., 2014. Sensitivity and Selectivity of Switchable Reagent Ion Soft Chemical Ionization Mass Spectrometry for the Detection of Picric Acid. J. Phys. Chem. A., 118(37) 8229-8236. https://doi.org/10.1021/jp5010192
Ahmadi, R., Jalali Sarvestani, M.R., 2020. Adsorption of Tetranitrocarbazole on the Surface of Six Carbon-Based Nanostructures: A Density Functional Theory Investigation. Russ. J. Phys. Chem. B., 14(1), 198-208.
Dennie, C.C., Mcbride, W.L., Davis, P.E., 1929. Toxic Reactions Produced By The Application Of Trinitrophenol (Picric Acid). Arch. Derm. Syphilol., 20(5), 698-704.
Doroudi, Z., Jalali Sarvestani, M.R., 2020. Boron nitride nanocone as an adsorbent and senor for Ampicillin: A Computational Study. Chem. Rev. Lett., 3(3), 110-116.
Huang, J., Wang, L., Shi, C., Dai, Y., Gu, C., Liu, J., 2014. Selective detection of picric acid using functionalized reduced graphene oxide sensor device. Sens. Actuat. B. Chem., 196, 567-573.
Jalali Sarvestani, M.R., Doroudi, Z., 2020. Removal of Reactive Black 5 from Waste Waters by Adsorption: A Comprehensive Review. J. Water. Environ. Nanotechnol., 5(2), 180-190. https://dx.doi.org/10.22090/jwent.2020.02.008
Jalali Sarvestani, M.R., Ahmadi, R., 2020. Trinitroanisole Adsorption on the Surface of Boron Nitride Nanocluster (B12N12): A Computational Study. J. Water Environ. Nanotechnol., 5(1), 34-44.
Nipper, M., Carr, R.S., Biedenbach, J.M., Hooten, R.L., Miller, K., 2005. Fate and effects of picric acid and 2,6-DNT in marine environments: Toxicity of degradation products. Mar. Pollut. Bull., 50(11), 1205-1217.
Rashvand, H.R., Hajiaghababaei, L., Darvich, M.R., Jalali Sarvestani, M.R., Jaberi Miyandoab, F., 2020. A Liquid Membrane Mercury Selective Electrode Based on 2-(N-pipyridino Methyl)-1-Cyano Cyclohexanol as a Novel Neutral Carrier. J. Anal. Chem., 75(10), 1340-1347. https://doi.org/10.1134/S106193482010010X
Song, Y.Z., Pang, X.J., Chen, J., Lu, Y.T., Xie, J., Ye, Y., 2019. Determination of picric acid using micro CdS crystal-modified glassy carbon electrode. Int. J. Environ. Anal. Chem., 100(9), 957-967.
Uslu, H., Demir, G., 2010. Adsorption of Picric Acid from Aqueous Solution by the Weakly Basic Adsorbent Amberlite IRA-67. J. Chem. Eng. Data., 55(9), 3290-3296.
Wang, M., Zhang, H., Guo, L., Gao, D., 2018. Fluorescent polymer nanotubes as bifunctional materials for selective sensing and fast removal of picric acid. Sens. Actuat. B. Chem., 274, 102-109.
